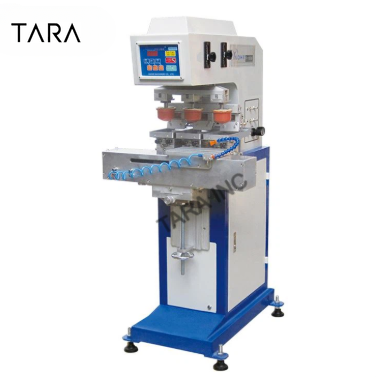

HL-250C-3 3 Color Open Inkwell Pad Printing Machine with Shuttle

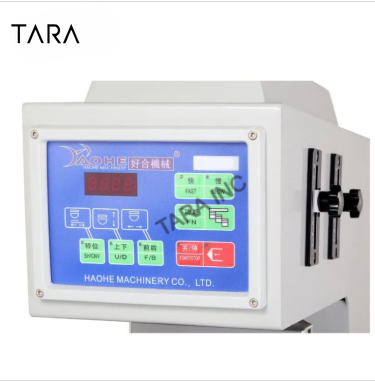

HL-250C-3 pad printing machine is a large sized robust and economic three colors pad printer with precision shuttle worktable. This machine features a thin membrane control panel on the front faceplate and an easily accessible pad stroke control is on the right side of the printer machine. The HL-250C-3 is great suitable for 1 to 3 color medium size image printing and widely applied in the printing of stationery, toys, face mask and electrical appliances.

Machine Features:

Microprocessor controlled system-- 12V PCB board, simple operation;

Whole machine with aluminum alloy coating, low weight and high intensity;

Equipped with precision shuttle worktable;

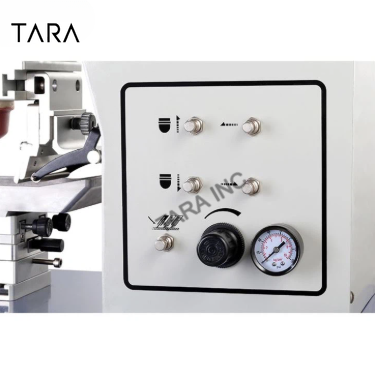

Separate adjustment of the pad up/ down stroke speed;

Equipped with precision and stable shuttle worktable;

Machine Specifications:

Model No.: HL-250C-3

Drive: Pneumatic

Plate Size: 250×100 mm

Max. Print Size: 230x80 mm

Max. Printing Speed: 1200 pcs/hr

Air Requirement: 5-6 bar

Machine Dimension: 980x630×1430 mm

Weight: 200 KG

Voltage: 110V/220V/230V 60/50Hz

Buyer Information:

Howell provides the customized machine service. We can customize the pad printing machine according to the specifications of the printed product. The buyers only need to provide us with the drawing file and specifications of the printing stock, but the best thing is to send us the product sample.

...
