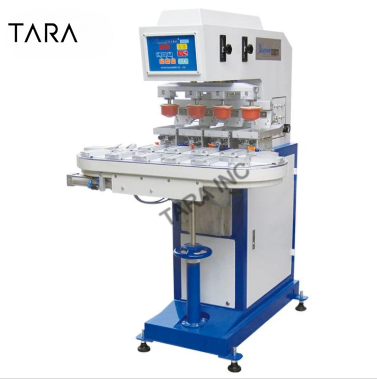

HL-200A-4 Open Ink Tray Four Color Conveyor Pad Printing Machine/ Ball PVC Pad Printer

Machine Features:

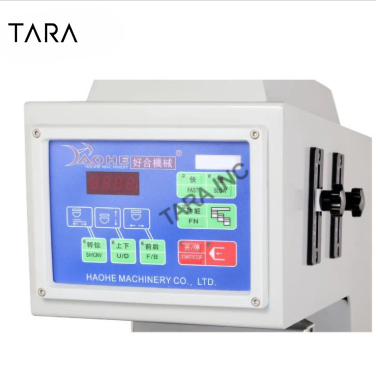

Microprocessor controlled system, low noise, clean ink scraping, simple operation;

200mm standard stroke, open ink tray design;

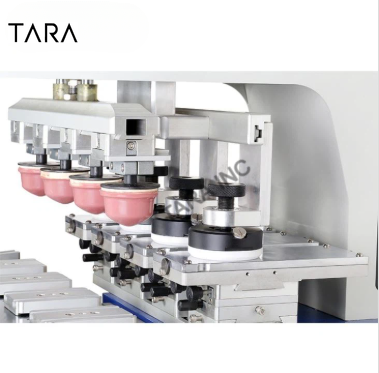

Ink tray available in 6"x 4" or 8"x 4" (150x 100mm or 200x 100mm);

Independent adjustment of up and down, forward and rear stroke;

Ink scraper is auto balance keeping in printing;

Stable, durable and fine workmanship;

Available for 1 to 4 color medium size image printing;

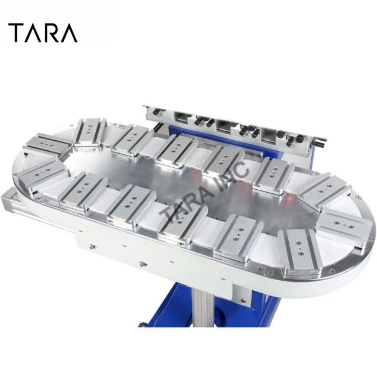

Equipped with 14 precision stations conveyor;

Foot pedal operation for single cycle.

Machine Specification:

Model NO.: HL-200A-4

Ink System: Ink Tray

Plate size: 200x100 mm

Max Print Size: 180x80 mm

Max Printing Speed: 1200 pcs/hr

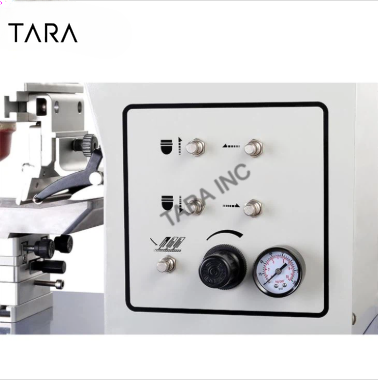

Air Requirement: 5-6 bar

Machine Weight: 260 kg

Voltage: 110V/220V/230V 50/60Hz

Machine Dimension: 1100x950x1450 mm

Buyer information:

Before purchasing the machine, the buyer should carefully read the description and purpose of the machine and confirm whether the printing machine is suitable for use. Or contact the factory and we will help you explain in detail.

The buyers also need to pay attention to the choice of pad printing head: pad printing hardness can be divided into soft, medium, hard.

The Jig of the pad printer should be prefabricated according the size of the printed products.

...
