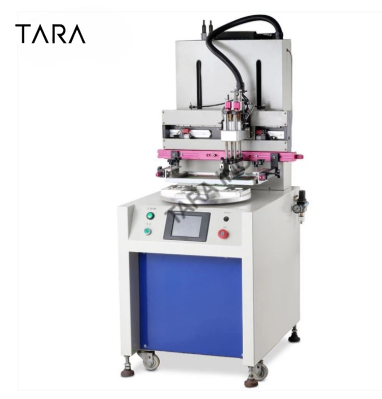

Product Description
|
Model |
HP-400F |
|
Drive system |
Pneumatic |
|
Max. Printing size |
100*150mm |
|
Working table size |
250*400mm |
|
Max. printing speed |
1600 pcs/hr |
|
Air requirement |
5-7 bar |
|
Machine dimension |
580*780*1350mm |
|
Net weight |
180kg |
|
Power |
220V 50/60Hz |
Features:
1. Cam indexer driven rotary table.
2. Dual axis AC motor or pneumatic driven.
3. Mitsubishi PLC with touch screen or PCB controlled.
4. Print station available in 2,4,6 and 8, output is more efficient than single work table machine.
5. Available to equip feeding and unloading robot.
6. Squeegee angle and calibrated height adjustment.
7. Regulated squeegee pressure with gauge.
8. Floor levelers & casters.
...
