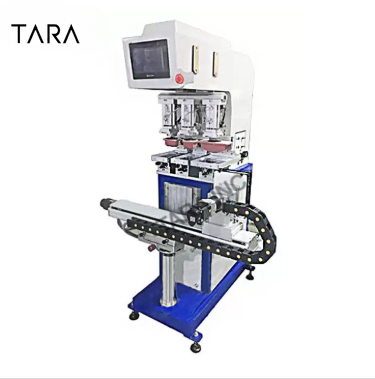

HL-200C-3E Automatic Servo Open Inkwell 3 Color Shuttle Pad Printer Machine

HL-200C-3E pad printing machine is a 3 color open inkwell shuttle pad printer ideal for printing on items that require to be printed on three sides. This printer machine has three open tray and accepts all of our solvent-based inks.

The HL-200C-3E pad printer is equipped with servo driven rotating fixture, which is suitable for printing parts in different positions.

Machine Features:

Microprocessor operation system-- PLC with touch screen;

200mm standard stroke, open ink tray design;

Available for 1 to 3 colors medium size image printing;

Independent adjustment of up and down, forward and rear stroke;

Versatile X, Y printing pad adjustment;

Servo driven rotating fixture for angles adjustment;

Complying with CE safety standards.

Machine Specifications:

Model No.: HL-200C-3E

Drive: Pneumatic and servo shuttle

Ink System: Open Ink Tray

Plate Size: 20×100 mm

Max. Printing Speed: 400 pcs/hr

Air Requirement: 5-6 bar

Machine Dimension: 1100×1100×1600 mm

Weight: 230 KG

Voltage: 110V/220V/230V 60/50Hz

Buyer information:

Before buying the machine, the buyer should carefully read the specification and purpose of the machine and confirm whether the machine is suitable for use or contact the factory for detail description about the printing machine. The buyers also need to pay attention to the choice of pad printing head -- soft, medium, hard.

...
