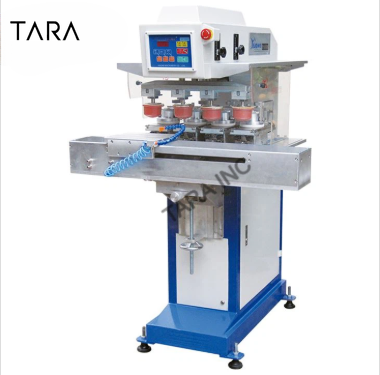

HLC-250C-4 4 Color Ink Cup Pad Printer with Shuttle Worktable

The HLC-250-4 pad printing machine is a large part 4 color sealed cup pad printer with a precision shuttle worktable. Designed for rapid job setup, this pad printer’s setup can be accomplished without the use of any tools. The single point fixture mounting reduces typical fixture costs and facilitates rapid changeover of tooling.

Machine Features:

250 mm standard machine stroke with sealed ink cup design;

Independent adjustment of forward and rear, up and down stroke;

Cast aluminum machine frame, low weight and high intensity;

Versatile X, Y printing pad adjustment;

Ink cup base with X, Y, Z adjustment;

Stable, durable working and fine workmanship.

Machine Specification:

Model NO.: HLC-250C-4

Ink System: Sealed Ink Cup

Ink Cup Size: ID82xOD90mm

Plate size: 350x100mm

Max Printing Speed: 900pcs/hr

Air Requirement: 5-6 bar

Weight: 260 kg

Voltage: 110V/220V/230V 50/60Hz

Machine Dimension: 1050x 900x 1450 mm

Buyer Information:

Before purchasing the pad printer machine, the buyer should carefully read the description of the machine and confirm whether the machine is suitable for use, or contact the factory for detail information. Howell also provides the OEM machine service. The buyers only need to provide us with the drawing file and specification of the printed product, but the best thing is to send us the product sample.

...
