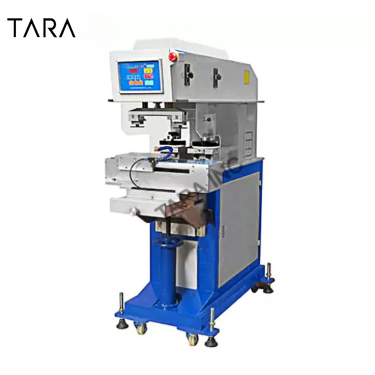

HLC-350D-S Large 2 Colors Ink Cup Pad Printer with Shuttle

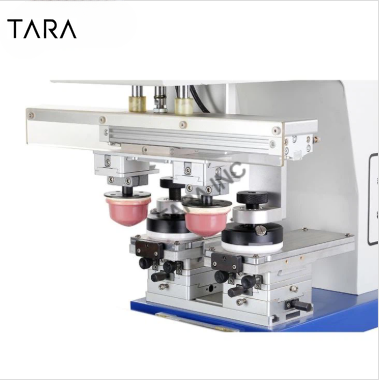

HLC-350D-S is a two color sealed ink cup pad printer, equipped with precision shuttle worktable. This two pad sliders printing machine is adopted a duel position pneumatic pad slider mechanism. The pad slide simplifies part assures flawless second color registration on printed products. It is well suitable for 1 to 2 color printing of plastic parts, promotional products, medical and electronic devices.

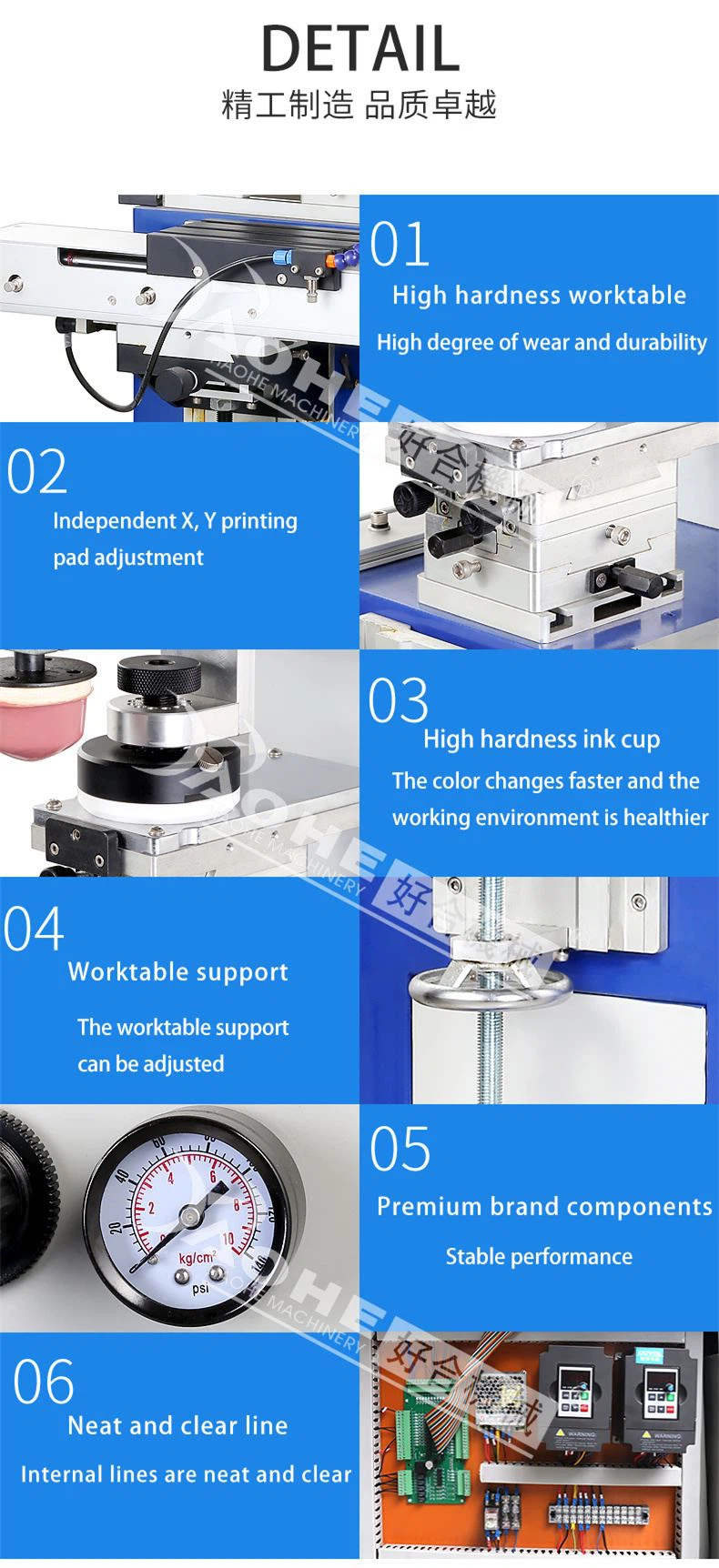

Machine Features:

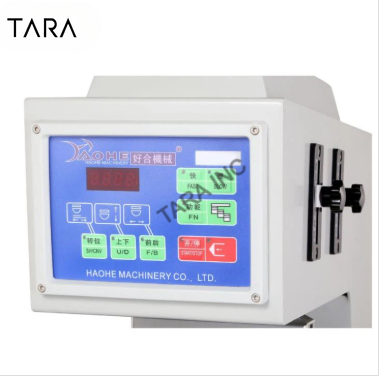

Microprocessor control-- 12V PCB board, easy operation, running stably and accurately;

350 mm standard machine stroke, enlarged ink cup design;

Separate adjustment of the pad up/ down stroke speed;

Whole machine with aluminum alloy coating;

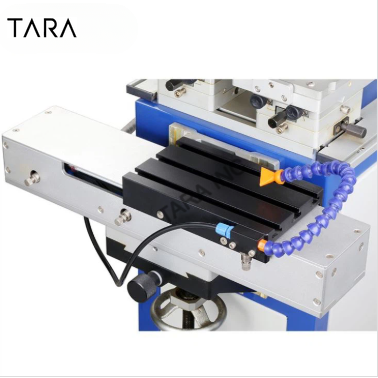

X/Y/R positioning ware-mounting table.

Machine Specifications:

Model No.: HLC-350D-S

Control System: 12V PCB board

Drive: Electric- pneumatic

Ink System: Sealed Ink Cup

Ink Cup Size: ID180x OD190 mm

Plate Size: 350×160 mm

Max. Printing Speed: 600 pcs/hr

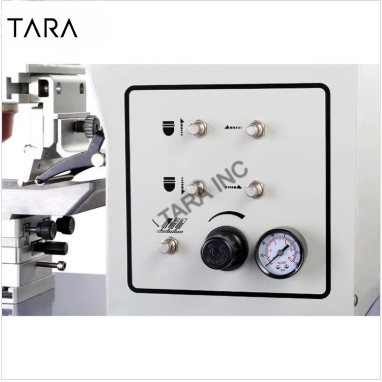

Air Requirement: 5-6 bar

Machine Dimension: 780×500×1350 mm

Weight: 300 KG

Voltage: 110V/220V/230V 60/50Hz

Buyer Information:

Before buying this pad printer machine, the buyer should read the specifications of this two color pad printing machine carefully and confirm whether the machine is suitable for use, or contact the factory for the detailed information.

...
